Insulated Siding Panel

Insulated metal panel construction offers materials savings, along with time and labor costs

This product can be used in new and retro-fit applications. These panels can be used in walls, ceilings, roofing for all types of architectural, commercial and industrial applications.

  • Hitchiner

    In 2015, Riess Constrtion was contracted to side the new office space for Hitchiner Manufacturing Co. using horizontal insulated siding panels and intricate window modules for an overall very classy finished product.

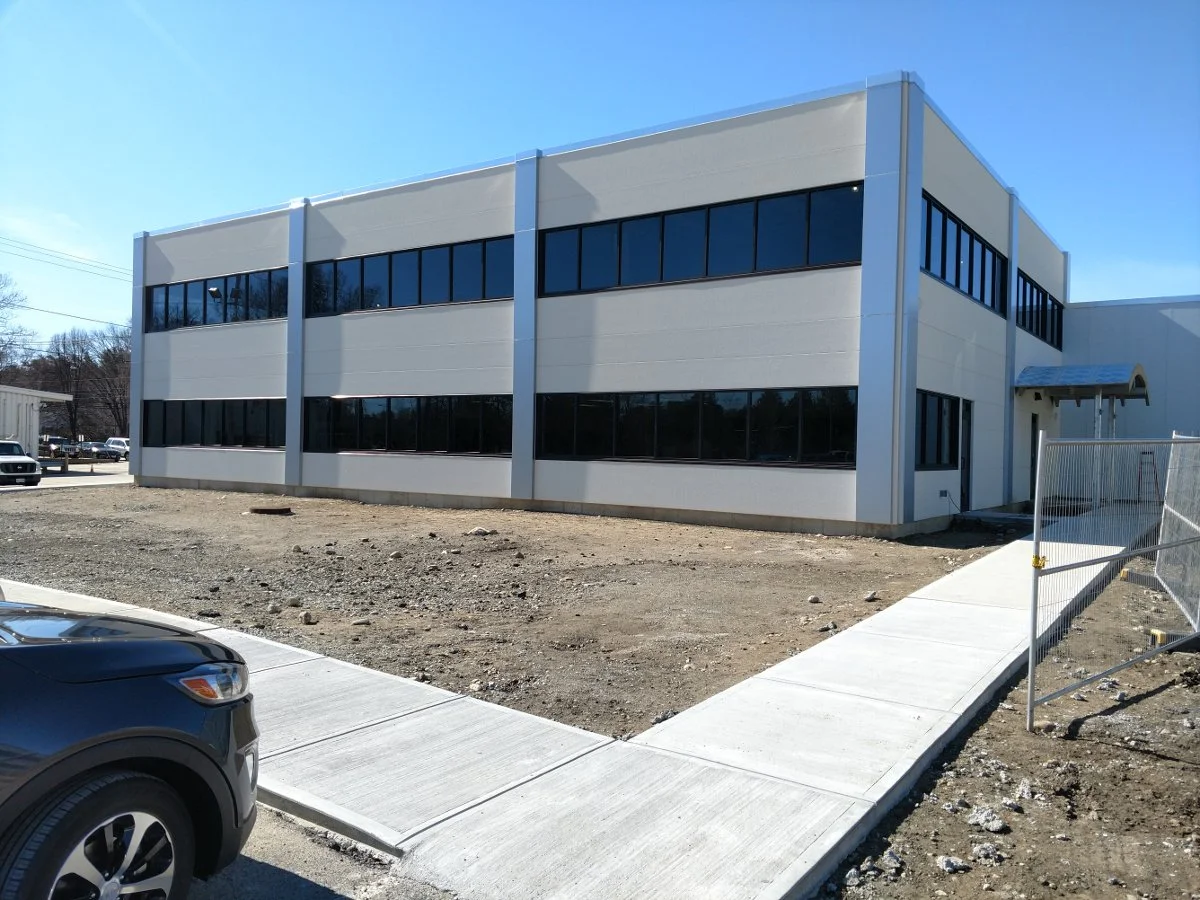

  • Hitchiner Phase 2

    In 2017 Riess Construction completed the second phase of Hitchiner Manufacturing’s two-step office makeover. The office was given 2” Tuff Wall siding panels installed horizontally and the warehouse was wrapped in 4” lite mesa vertical panels.

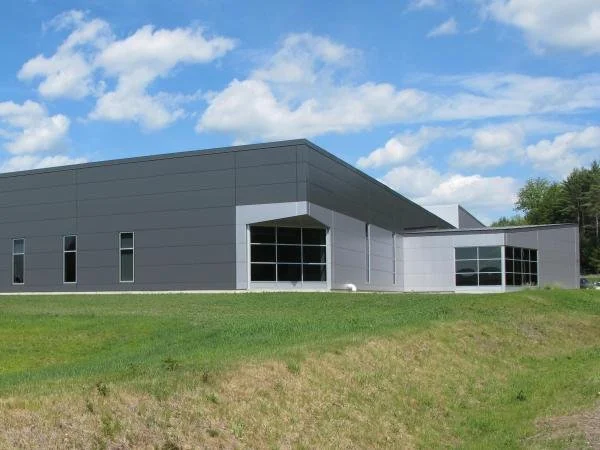

  • Moore Nanotech

    in 2015 Riess Construction sided both the new office and warehouse spaces for Moore Nanotech in Swanzey, New Hampshire. Th warehouse received vertical insulated panel and the office received horizontl insulated panel.

USES & APPLICATIONS

This product can be used in new and retro-fit applications. These panels can be used in walls, ceilings, roofing for all types of architectural, commercial and industrial applications. Insulated metal panel offer materials savings, along with time and labor costs.

FEATURES & BENEFITS

Foamed-in-place technology offers the most thermal efficient architectural panel available today. Insulated metal panels are placed outboard of the structural supports, this creates a continuous thermal barrier for maximum thermal efficiency. There are no areas where the insulation is compressed or thermal bridges are created.

FIREWALLS

Firewalls form (1) to (3) hour ratings, in 4″ think to 8″ think panels, module width is 42″, the length is limited to weight. Insulated fire-resistant panels are ideal for industrial buildings like manufacturing plants, auxiliary buildings at refineries and other at risk for fire building installations.

HORIZONTAL

Trimless ends complement the high profile appearance of horizontally installed panels. Vertical joint in horizontal applications of this panel utilizes a dry gasket that helps maintain a clean weathertight seal and remains in place even under the most sever weather conditions. Coordinated with a variety of module widths, reveals, and offered in numerous colors, this panel creates virtually limitless building design options.

  • Thicknesses from 2″ – 4″

  • Lengths from 8′ – 32′

  • Offered in multiple gauges

VERTICAL

Riess Construction has the availability of several panel profiles, we even offer panels with light or heavy “stucco” finish. Fire resistive panels are also available. Panel thicknesses are from 2″ to 6″ with lengths up to 53′. Colors that we offer are standard, Premium I and Premium II Metallic colors. Offered in multiple gauges.

INTERIOR PARTITIONS

Insulated metal panels can offer a cost effective interior option to large warehouse divider walls and partitions.

ROOF APPLICATIONS

Insulated metal standing seam roof panel provides exceptional benefits including a steel seam exterior face for unsurpassed weather-tight performance. The expansive panel width options contribute to installation savings due to fewer joints.

  • Module widths are 30″, 36″, 42″

  • Lengths are from 8′ – 53′

  • Thicknesses are from 2″ – 6″

  • Offered in multiple gauges.

  • Public Work Facilities
